Product Description

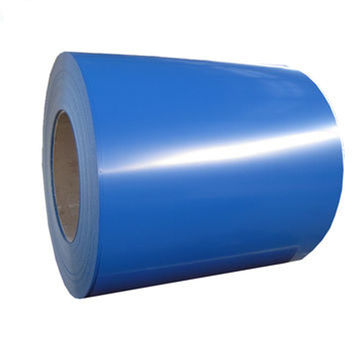

PPGI coated coil is coated with organic layer, which provides higher anti-corrosion property and a longer lifespan than galvanized steel sheets.
The base metal for PPGI consist of cold-rolled steel, Hot dip galvanized steel and hot dip galvalume steel The coating material is as following: Polyester, Silicon modified polyester, Polyvinylidene fluoride, high-durability polyester ,etc.
Production process : one coating one baking, double coating one baking, double coating double baking, three coating three baking ,etc.
According to surface treatment, PPGI/PPGL contains : Regular, Embossed and Printed.
Product Name | Prime Quality PPGI coil |
Standard | GBT12754-2006 Q/BQB440 JISG3312 EN10169-2010 ASTM A755 |
Grade | DC51D CGCC DC52D CGCD1 DC53D S280GD, CGC400, S350GD CGC440, S550GD, CGC570 |
Trade Terms | EXW/FOB/CFR/CIF |
Supply Ability | 30000 Metric Ton monthly |
Packing | Standard export packaging. Can be packaged according to customer requirements |
Payment Terms | L/C, T/T, O/A, D/P, etc. The payment method is flexible and can be negotiated by both parties |
Delivery time | Stock steel/Steel for simple cutting/Small amount of general standard steel: about 5-20 days for easy delivery; Custom steel/bulk steel: about 15-30 days for delivery. Contact us for specific delivery times |
Specifications | Thickness: 0.14-2.0mm Type: coil/sheet/strips Width: 20- 1350mm Length: As buyer requirement Zinc Coating: 40g-275g/m2 Coil ID : 508mm or 610mm Place of Origin: Tianjin, shanghai, China Standard: AISI, ASTM, BS, DIN, GB, JIS Technique: Cold Rolled/Hot Rolled Paint kind: PE, SMP, HDP, PVDF Surface type: Wooden, Stone, High Glossy, Film, Wrinkled , Embossed, Camouflage, Printing, White Board |
Technical parameter | Color coating : Maximum 30um/25um (top side/back side ) T bend: 0T 1T 2T 3T Glossy : High, Medium, Low Impact : 9J 12J Pencil hardness: 3H MEK: 100 times Salt spray test: 5000 hours UV test: 3500 Hours |
Related product we can provide | Hot dipped galvanized steel coil Hot dipped galvalume steel coil PPGI Prepainted galvanized steel coil PPGL Prepainted galvalume steel coil Roofing sheet Corrugate steel sheet |
Color-coated coils are based on hot-dip galvanized sheet, hot-dip galvanized sheet, etc., and after surface pretreatment (chemical degreasing and chemical conversion treatment), one or several layers of organic coatings are applied on the surface, and then cured by baking.
FAQ：
Q: What products does your company have?
A: Our company produces all kinds of galvanized sheets, coils, tubes, steel strips, PPGI/PPGL, roof panels, etc. Production experience, support customization.
Q: What are the advantages of your company?
A: (1): Prime quality and Competitive price.
(2): Excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's quality.
(4): Professional packing teams which keep every packing safely.
(5): Samples can be provided as your requirements.
Q: What is your terms of payment ?
A: Can be negotiated by both parties. If you have another question, pls feel free to contact us as below.
Q: What about your price?
A: Our price is very competitive.
Pls feel free to contact us if you are interested in our products.
Q: How long is your delivery time?
A: Stock steel/Steel for simple cutting/Small amount of general standard steel: about 5-20 days for delivery; Custom steel/bulk steel: about 15-30 days for delivery. Contact us for specific delivery times.
